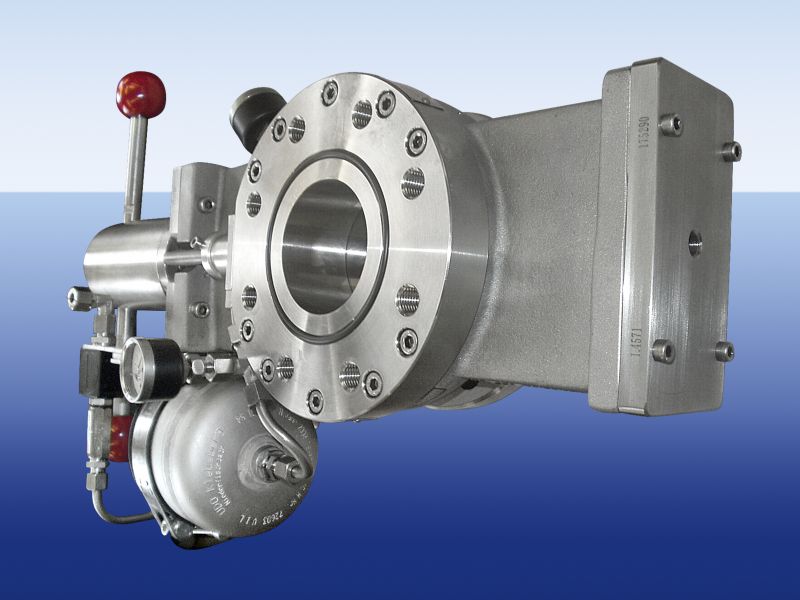

Pressure- and vacuum-tight slide gate valve design FT
with pneumatically and manually operated actuators and others on request.
Technical specifications
| Connection: | Flange pursuant to DIN EN 1092-1 Form A, drilled according to PN10 or ASA 150 lbs. and others on request |
| Design temperature: | -20°C up to 250°C (material dependent) |
| Design pressure: | Slide gate valve in silumin (Standard: 1 bar up to 6 bar) |
| Operating pressure: | Passage pressure-tight 6 bar and vacuum-tight 1 mbar abs. housing and stem guide 5 x 10-8 mbar abs. |
| Materials: | Silumin, GGG 40.3, stainless steel (Standard), Special materials: e.g. Ni-based alloy, titanium, zirconium, duplex etc. on request |
| Gasket material | NBR, EPDM, FKM (Standard), Special materials: e.g. FFKM, silicone etc. on request |
| Options | Coatings, polishing, safety positions, actuator types, special slide gate valves |
