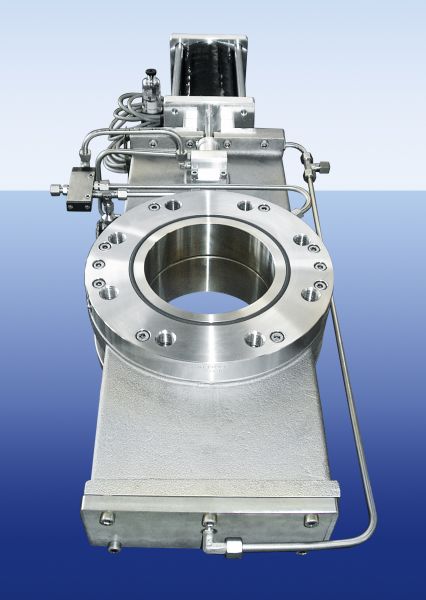

Pressure- and vacuum-tight slide gate valve design FDT
With pneumatically operated acutators and others on request.
Available as of DN 150
Technical specifications
| Connection: | Flange pursuant to DIN EN 1092-1 Form A, drilled according to PN10 or ASA 150 lbs. and others on request |
| Design temperature: | -20°C up to 250°C (material dependent) |
| Design pressure: | Slide gate valve in stainless steel (Standard : 1up to 10 bar), other on request up to 40 bar |
| Operating pressure: | Passage pressure-tight (1 up to 10 bar)/ vacuum-tight 1 mbar abs. housing and stem guide 5 x 10-8 mbar |
| Materials: | Standard: Silumin, Stainless steel, GGG 40.3 Special materials: e.g. Ni-based alloy, titanium, zirconium, duplex etc. on request |
| Gasket material: | Standard: NBR, EPDM, FKM Special materials: e.g. FFKM, silicone etc. on request |
| Options: | Coatings, polishing, safety positions, drive types, special slide gate valves |
