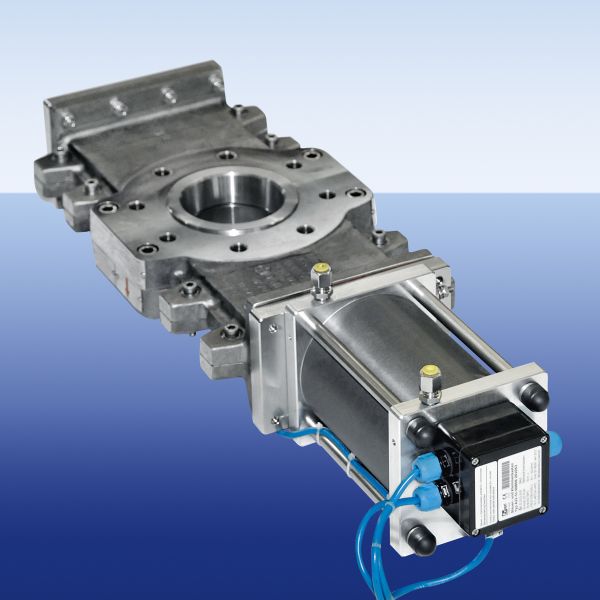

Product-tight slide gate valve design G0
with pneumatically and manually operated actuator
Technical specifications
| Connection: | Flange pursuant to DIN EN 1092-1 Form A, drilled according to PN10 or ASA 150 lbs. and others on request |
| Design temperature: | -20°C up to 250°C (material dependent) |
| Design pressure: | Slide gate valve in silumin (Standard: up to 1 bar), other on request |
| Operating pressure: | Passage product-tight |
| Materials: | Silumin and stainless steel |
| Gasket material: | NBR, EPDM, FKM (Standard) |
