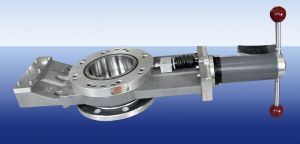

Pressure- and vacuum-tight slide gate valve design PT ha

Technical specifications

Connection: Flange pursuant to DIN EN 1092-1 Form A, drilled according to PN10 or ASA 150 lbs. and others on request
Design temperature: -20°C up to 250°C (material dependent)
Design pressure: Slide gate valve in silumin (Standard: 1 bar up to 6 bar), others on request
Operating pressure: Passage pressure-tight 6 bar/ vacuum-tight 10-3 mbar abs.
housing and stem guide 5 x 10-8 mbar abs.
Materials: Silumin, GGG 40.3, stainless steel (Standard),
Special materials: e.g. Ni-based alloy, titanium, zirconium, duplex etc. on request
Gasket material: NBR, EPDM, FKM (Standard)
Special materials: e.g. Silicone on request
Options Coatings, polishing, safety positions, actuator types, special slide gate valves
