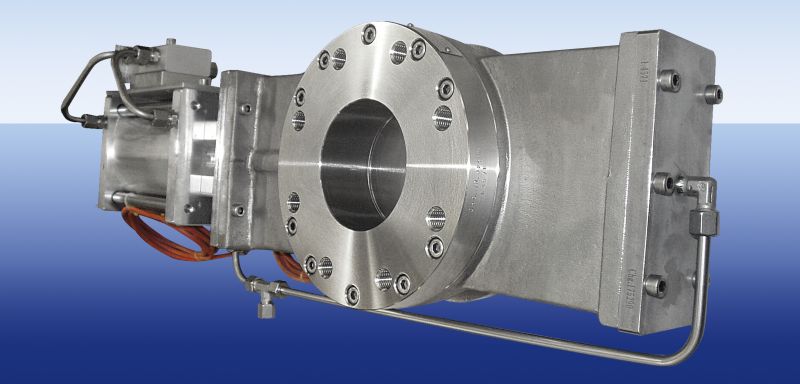

Product-tight slide gate valve design GT
with pneumatically operated and manually operated actuators and others on request.
Technical specifications
| Connection: | Flange pursuant to DIN EN 1092-1 Form A, drilled according to PN10 or ASA 150 lbs. and others on request |
| Design temperature: | -20°C up to 250°C (material dependent) |
| Design pressure: | Slide gate valve in silumin (Standard: 1 up to 6 bar), other on request |
| Operating pressure: | Passage product-tight pursuant to EN-12266-2 housing and stem guide 5 x 10-8 mbar |
| Materials: | Silumin, GGG 40.3, stainless steel 1.4581 (Standard) |
| Gasket material: | NBR, EPDM, FKM (Standard) |
| Options: | Coatings, polishing, safety positions, actuator types, special slide gate valves, further options on request |
