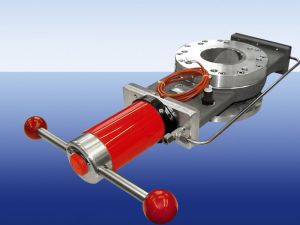

Pressure- and vacuum-tight slide gate valve design GPT
with pneumatically and manually operated actuators and others on request.
Technical specifications
| Connection: | Flange pursuant to DIN EN 1092-1 Form A, drilled according to PN10 or ASA 150 lbs. and others on request |
| Design temperature: | -20°C up to 250°C (material dependent) |
| Design pressure: | Slide gate valve in silumin (Standard: 6 bar), others on request |
| Operating pressure: | Passage pressure-tight/ vacuum-tight 1 mbar abs. up to 3 bar and housing and stem guide vacuum-tight 5 x 10-8 mbar |
| Materials: | Silumin, GGG 40.3, stainless steel (Standard), Special materials: on request |
| Elastomers | NBR, EPDM, FKM (Standard), Special materials: e.g. FFKM, silicone etc. on request |
| Options | Coatings, polishing, safety positions, actuator types, special slide gate valves |
